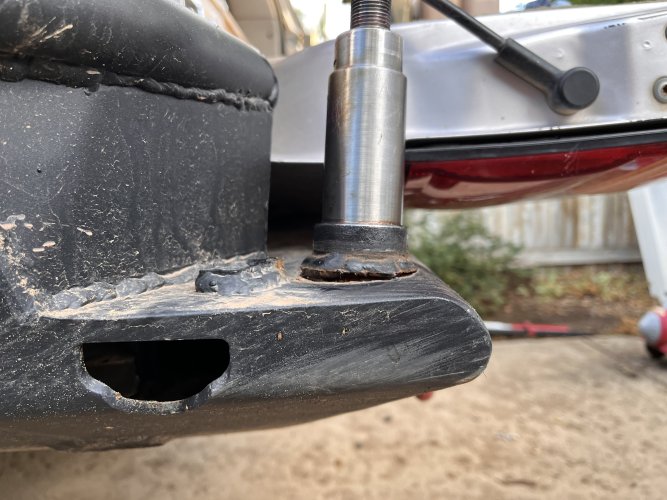

Well I had a little surprise today when I went to air up. The weld for the spindle on one of my 4x4 labs rear swingouts failed. Surely my fault, but now I need to fix this. Thoughts?

Cut rest out clean it all up and weld it back in or order a new spindle from 4x4 labs?

Should I add some reinforcements to the area?



AimCOTaco

Cruise Moab Committee
Staff member
Cruise Moab Committee
Joined
Aug 13, 2010
Messages
2,248
Location
Longmont, CO
I welded my 4x4 labs internally at the lower end as well into the lower edge of the shell. I may have even drilled the lower shell and used a rosette weld there.
Glad you found it in time!


Shuksan

Rising Sun Member
Joined
Nov 1, 2017
Messages
906
Location
Denver
I welded my 4x4 labs internally at the lower end as well into the lower edge of the shell. I may have even drilled the lower shell and used a rosette weld there.
Glad you found it in time!
Interesting, the lower ends on mine don't reach the lower shell by ~1". 4x4labs responded to me quickly yesterday and are gonna sell me a new spindle for a very fair price, so I think I will cut the old one out and clean it up. But I will also ask them about this.


KC Masterpiece

Hard Core 4+
Joined
May 4, 2019
Messages
1,291
Interesting, the lower ends on mine don't reach the lower shell by ~1". 4x4labs responded to me quickly yesterday and are gonna sell me a new spindle for a very fair price, so I think I will cut the old one out and clean it up. But I will also ask them about this.

I ordered mine built from 4x4 labs and it was welded in both locations. It broke similar to yours but on the lower shell weld.

Luke sent me a new bumper and had the old one shipped back. New one has seen more abuse and no issues so far.


damon

Vice Commander
Cruise Moab Committee
Joined
Nov 28, 2018
Messages
1,120
Location
Arvada, CO
Simple oil change... 8 bolts to remove the schrockworks front 3 (of 5) skids so I didn't blast oil everywhere. Found a missing bolt and shim. Changed oil and filter. Logged oil change. Last one was 6k ago in December of 2020 (jist rolled over 200k). Lubbed entire drive line and front UCAs. Reinstall front 3 skids. Locate used bolt and temporarily use washers as shims. Found out bolt abandoned ship because threas in tacked on nut don't want to snuggle the bolt any more. Not sure what to do with that in the short term... guess I'll run it without. Mostly whole again and ready to go another few k.

Side note, does anyone know where get or have experience with these drain plug valves so I can just slip a hose on and turn the pet-cock? I have plenty of space between the skid and the drain plug to do this.


Shuksan

Rising Sun Member
Joined
Nov 1, 2017
Messages
906
Location
Denver
I ordered mine built from 4x4 labs and it was welded in both locations. It broke similar to yours but on the lower shell weld.

Luke sent me a new bumper and had the old one shipped back. New one has seen more abuse and no issues so far.
Good info, I will talk with them today


AlpineAccess

Hard Core 4+
Joined
Nov 19, 2019
Messages
1,253
Location
Loveland
Well I had a little surprise today when I went to air up. The weld for the spindle on one of my 4x4 labs rear swingouts failed. Surely my fault, but now I need to fix this. Thoughts?

Cut rest out clean it all up and weld it back in or order a new spindle from 4x4 labs?

Should I add some reinforcements to the area?

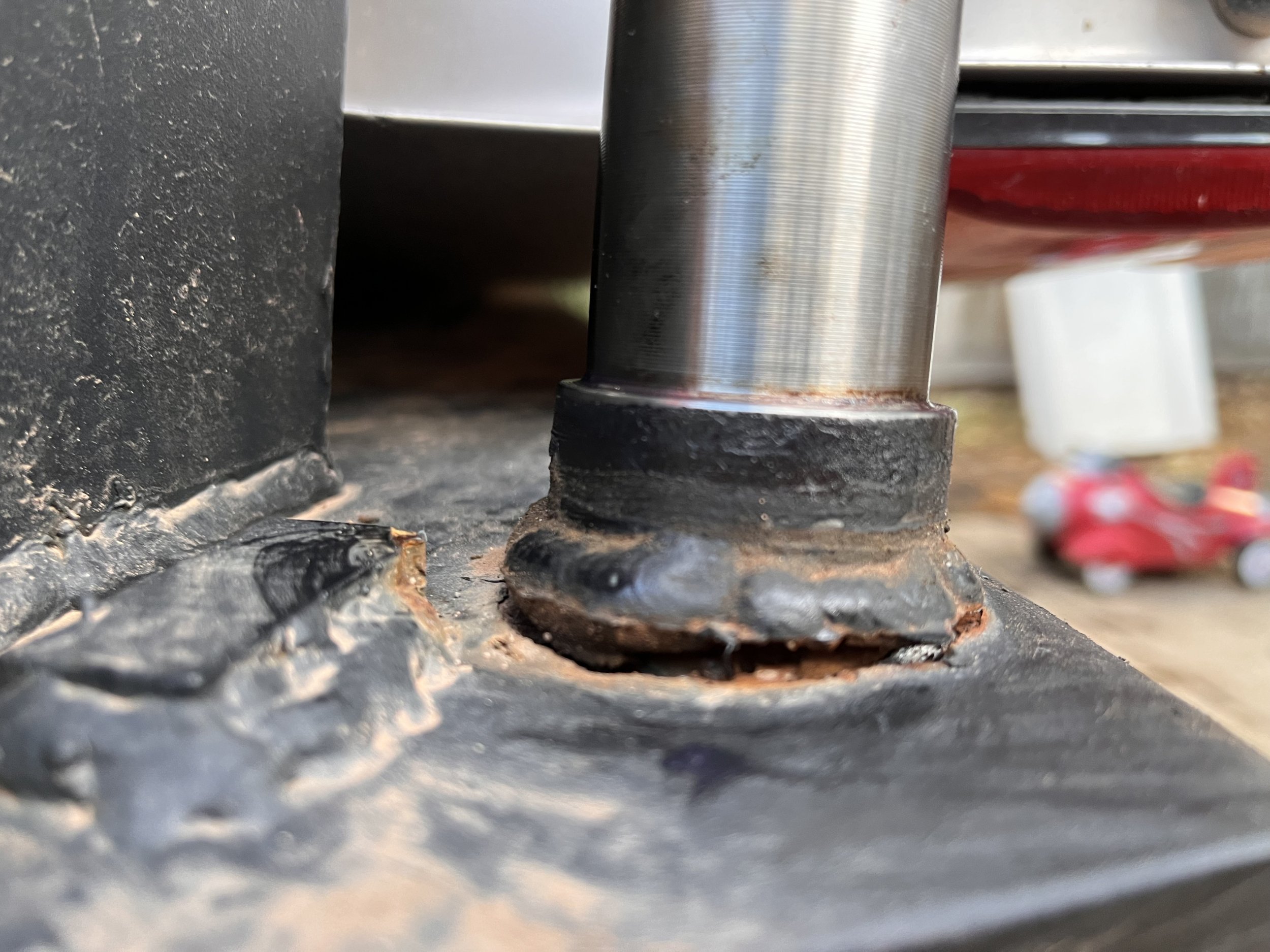

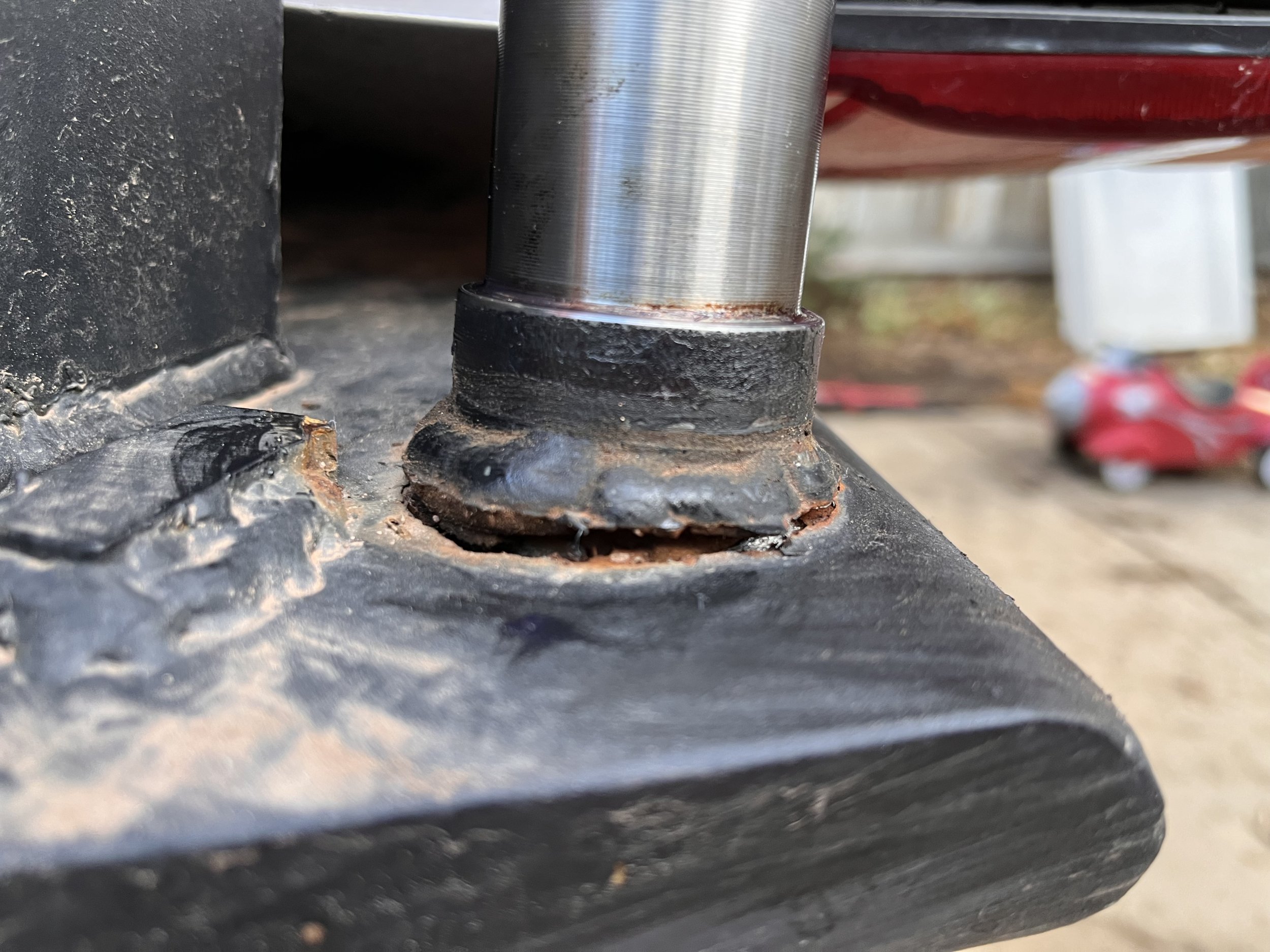

View attachment 105750View attachment 105751View attachment 105752
Brian, I also welded mine internally at the base, which requires working from the inside with the bumper off the vehicle. This also looks like more penetration is needed on that weld, or maybe multiple passes. I preheated the spindle both top and bottom with a map torch after I tacked it in place but before I ran my beads, not sure if that helps. Its tricky as there isn't a good way to gusset this up top, but you may find a way to gusset the base of the spindle in.

My spindle did reach down to the lower outer shell, did I read that yours didn't?

I'll have to look this over closely to see if there is any sign of fatigue on mine.


HoneyBadger

Rising Sun Member
Joined
Apr 24, 2013
Messages
1,800
Location
Pine
That style spindle breaks in that manner consistently. There's really no reinforcement for it. Even if you have the spindle go all the way through the bumper and weld it at every possible location, it will eventually just snap the spindle off at the top regardless.
We stopped using those all together for that reason. There is a spindle from 4xinovations that uses a "C" shape and has a heavy duty "C" shaped case that can be welded on and reinforced if desired. We've had far better performance with these spindles and have yet, to my knowledge, had one fail.
The straight post spindles will always fail in the way shown above or something similar to it. The one exception to this is if you have a roll cage or some other type of exterior armor where an additional post spindle can be welded above the lower one. This configuration seems to work well because you have two points holding all that weight and handling the vibrations. But obviously not everyone wants to put additional armor on their vehicles to be able to achieve this end.
Just FYI.


Shuksan

Rising Sun Member
Joined
Nov 1, 2017
Messages
906
Location
Denver
That style spindle breaks in that manner consistently. There's really no reinforcement for it. Even if you have the spindle go all the way through the bumper and weld it at every possible location, it will eventually just snap the spindle off at the top regardless.
We stopped using those all together for that reason. There is a spindle from 4xinovations that uses a "C" shape and has a heavy duty "C" shaped case that can be welded on and reinforced if desired. We've had far better performance with these spindles and have yet, to my knowledge, had one fail.
The straight post spindles will always fail in the way shown above or something similar to it. The one exception to this is if you have a roll cage or some other type of exterior armor where an additional post spindle can be welded above the lower one. This configuration seems to work well because you have two points holding all that weight and handling the vibrations. But obviously not everyone wants to put additional armor on their vehicles to be able to achieve this end.
Just FYI.
Very good info. Is this what you are referring to? (https://www.4xinnovations.com/Swing-Out-Tire-Carrier-Hinge-Assembly_p_109.html)

Sending you a PM too.


Inukshuk

Rising Sun Member
Joined
Aug 24, 2005
Messages
7,271
Location
Denver, CO

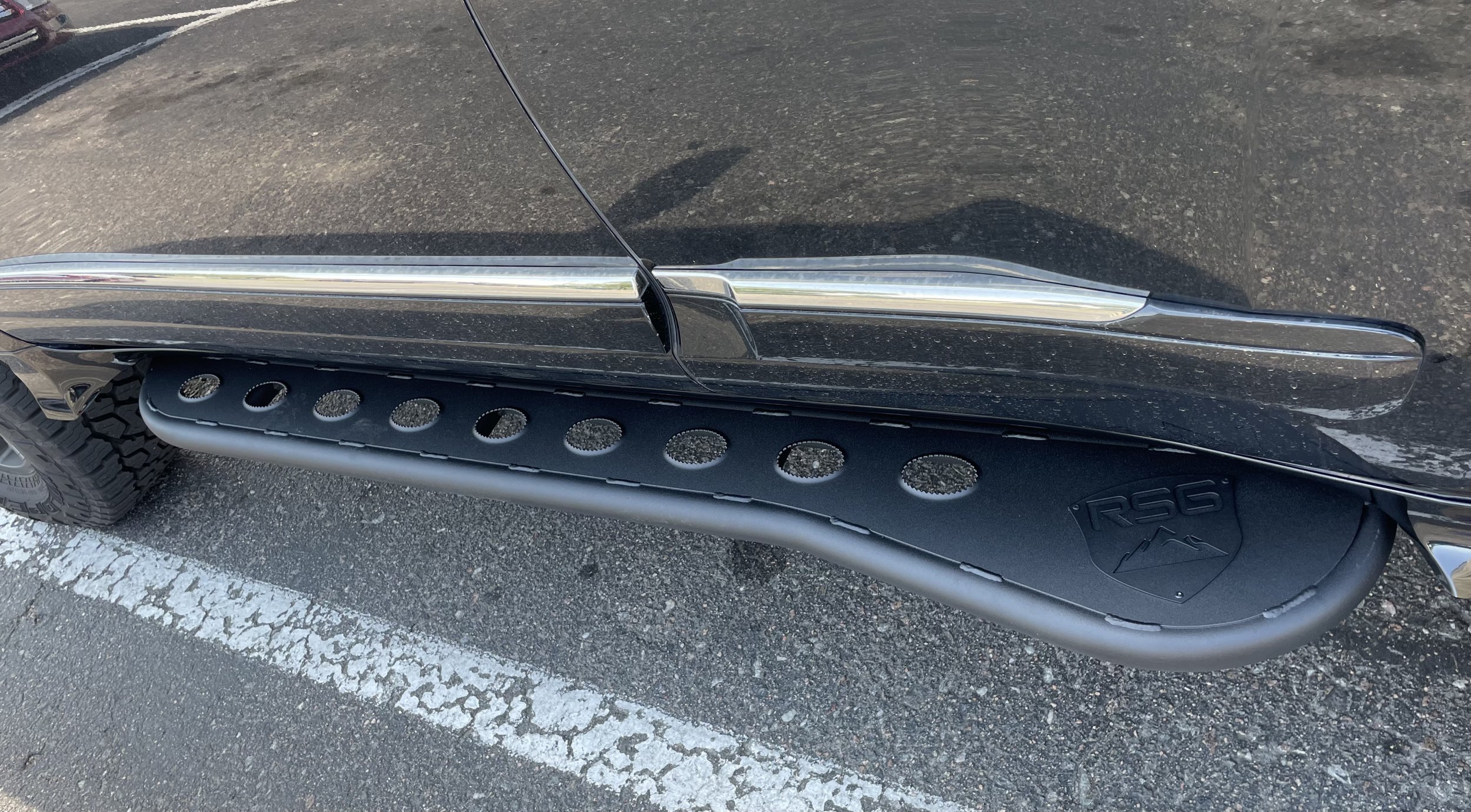

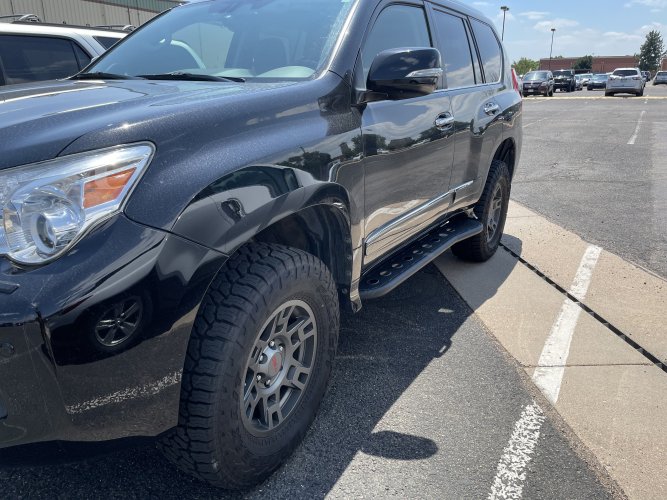

damon

Vice Commander
Cruise Moab Committee
Joined
Nov 28, 2018
Messages
1,120
Location
Arvada, CO
Replaced the power steering fluid, and kicked up the timing on my 80 from 3* to 7*. She feels like I added a supercharger. I should have done this a long a time ago.


Inukshuk

Rising Sun Member
Joined
Aug 24, 2005
Messages
7,271
Location
Denver, CO
Did some 0-60 and 1/4 mile runs and made a video. Really the first minute and a half is all that's worth watching...
Turn the volume up! Nicely done. Can't wait to see it.


coloradobound

Hard Core 4+
Joined
May 17, 2007
Messages
615
Location
Colorado

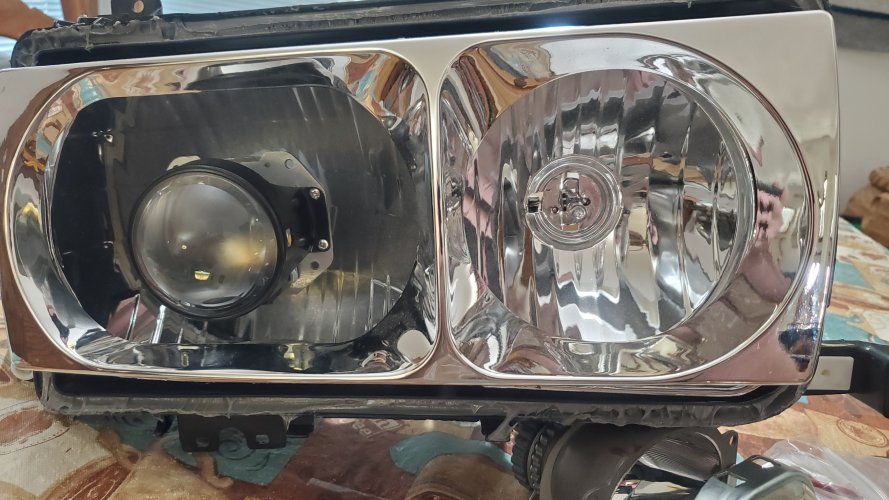

Not really done to my rig, but messing with projector options on 80 series glass depo headlights
