FZJ80 starting woes

satchel

Rising Sun Member
Joined
Jun 16, 2009
Messages
601
Location
Erie Co
Looks like the starter is self grounding to the block. May help to make sure the mating surface from the starter to the block is free of grime and getting a good connection, and that any grounds close to there going back to the battery are in good shape. I know you stated you did the ground from the battery to the block but are there a couple of grounds on the block where perhaps the one closest to the starter isn't as good?

I think I'd bypass the signal wire for troubleshooting and that will tell you quickly if it is the power or ground side of the equation.

Last edited:

AimCOTaco

Commander
Cruise Moab Committee
Joined
Aug 13, 2010
Messages
1,818
Location
Longmont, CO
Have you tried browsing Camry adds from the driver seat yet?
Dang man, I'm surprised that between the cable and the new starter you're not there. My flat fender may or may not have a push button starter switch to band-aid a bad ignition switch... but I'd probably not do that to the 80.

Jump the #6!


DaveInDenver

Rising Sun Ham Guru
Joined
Jun 8, 2006
Messages
11,437
Location
Mesa County
Looks like the starter is self grounding to the block. May help to make sure the mating surface from the starter to the block is free of grime and getting a good connection, and that any grounds close to there going back to the battery are in good shape. I know you stated you did the ground from the battery to the block but are there a couple of grounds on the block where perhaps the one closest to the starter isn't as good?
Check your grounds, it's not just for troubleshooting FJ40s.


satchel

Rising Sun Member
Joined
Jun 16, 2009
Messages
601
Location
Erie Co
I feel like there was a ground on the front engine hanger as well, but I would assume what I have circled here is where your main ground for the starter would be. Is this the one you checked?



Hulk

Cruise Moab Chairman & Webmaster
Staff member
Moderator
Cruise Moab Committee
Joined
Aug 22, 2005
Messages
14,214
Location
Centennial
Thanks for all the help guys. Headed out for some camping with the family — I'll pick this up again next week. My first thing to do is jumper the big wires for the Neutral Safety Switch to verify if that is indeed the problem. Need to get my 80 running before the BOWAGW Run!


Hulk

Cruise Moab Chairman & Webmaster
Staff member
Moderator
Cruise Moab Committee
Joined
Aug 22, 2005
Messages
14,214
Location
Centennial
I bought a new OEM NSS. My truck seems to start better in Neutral then in park. Bought it from Elmore TRD parts in Cali. I checked through Stevinson and Elmore was about 20 bucks cheaper. I belive the NSS is the same part number for 91 through 95?
https://trdtoyotaparts.elmoretoyota.com/oem-parts/toyota-neutral-safety-switch-8454060010
Have you received it yet? Can you post a photo of it when you get it? I was trying to hunt this down last night. Stevinson doesn't even call it a NSS — it's listed as an Automatic Transmission Gear Position Sensor with the same part number.


ccslider

Hard Core 4+
Joined
Apr 20, 2015
Messages
1,041
Location
Westminster
Best way to clean terminals is a hand held sand blaster filled with baking soda.


RayRay27

Cruise Moab Committee
Cruise Moab Committee
Joined
Jun 26, 2015
Messages
970
Location
Thornton CO
Have you received it yet? Can you post a photo of it when you get it? I was trying to hunt this down last night. Stevinson doesn't even call it a NSS — it's listed as an Automatic Transmission Gear Position Sensor with the same part number.
Not yet. It should be here tomorrow or Saturday.


ccslider

Hard Core 4+
Joined
Apr 20, 2015
Messages
1,041
Location
Westminster
I'm sure I have a spare NSS laying around in the pile I call a garage if you want to test


Hulk

Cruise Moab Chairman & Webmaster
Staff member
Moderator
Cruise Moab Committee
Joined
Aug 22, 2005
Messages
14,214
Location
Centennial
UPDATE: Here is what I have done so far...

Previously on Cruiser ER:
1. Cleaned and inspected the wires and plug connecting to the neutral safety switch.
2. Replaced the fusible link.
3. Replaced the starter.
4. Replaced both the positive battery cable (connects to starter) and the negative battery cables (connects to engine block + a smaller wire connecting to the body)
5. Replaced the ignition switch.

New:
6. Pulled the neutral safety switch. Used a jumper to bypass the switch to see if this is the problem. No luck.
7. Pulled, inspected, and re-installed all fuses. No luck.
8. Used a jumper from the positive terminal on the battery directly to the small wire on the starter. Details. Essentially, I hot-wired the Cruiser, bypassing the entire ignition circuit. THIS WORKS! It cranks strongly and instantly.

This means the problem is NOT:
- battery
- starter
- battery cables
- grounds

Problem is somewhere in the ignition circuit. Here's a description of the circuit on Mud:
The current in the starter circuit starts at the battery,
passes through fusible links and fuses,
then through the ignition switch (switch is closed when the key is at the START position) and
then takes a tour over to the glovebox
before coming into the NSS as the black-with-white-tracer wire.
From there, assuming the transmission is in neutral or park, the current leaves the NSS as the black-with-red-tracer wire and goes to the starter solenoid.

Next suspects:

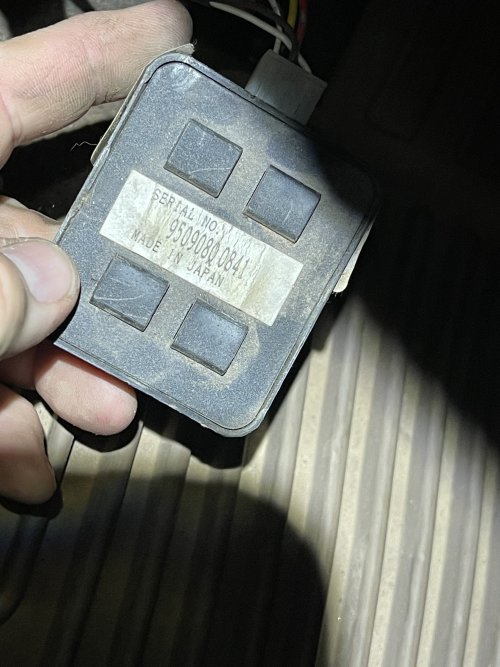

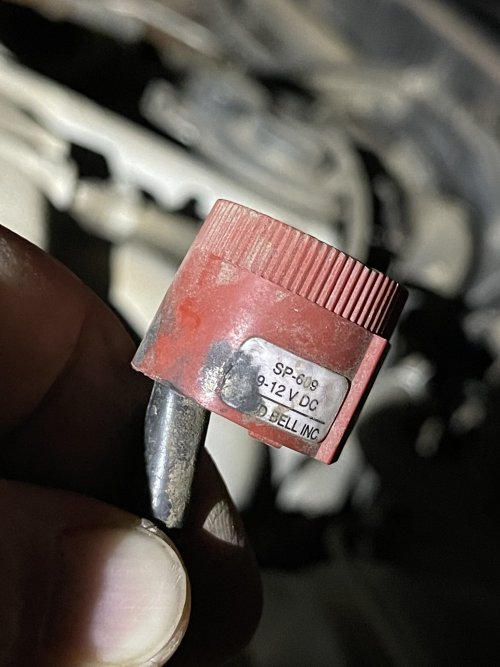

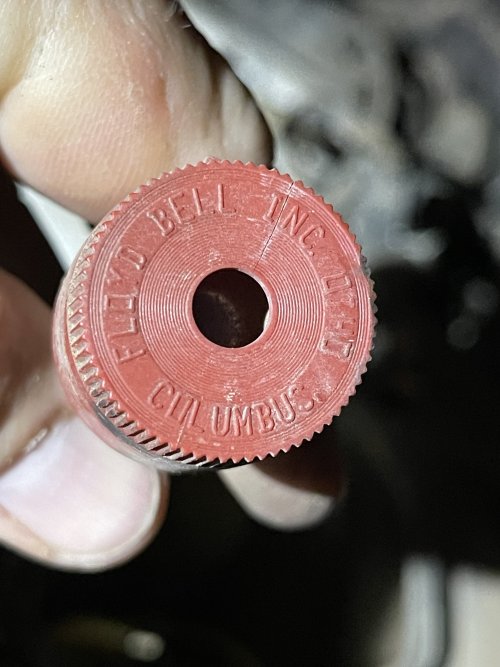

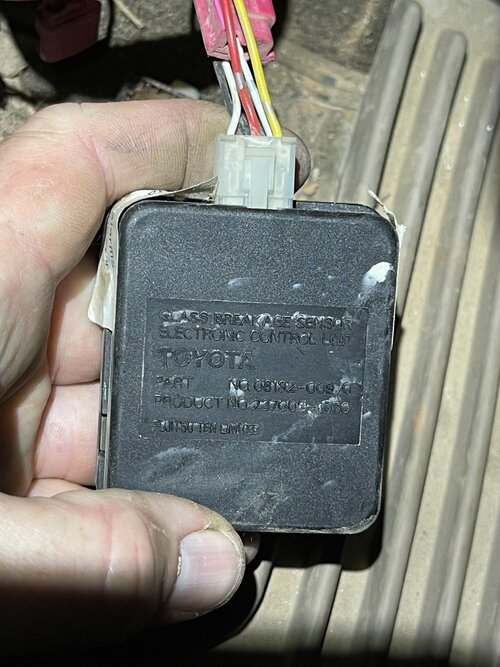

  • I noticed a piezo chirper in the engine bay. It's a Floyd Bell SP-609. It's connected to a Glass Breakage Sensor Electronic Control Unit, Toyota Part No. 08192-00970. Not sure how I diagnose the sensor to see if it's good. Is the sensor and alarm system even part of the ignition circuit? I'd be glad to remove the whole thing, but I'd love to keep the keyless remote. See attached photos.
  • Wondering what the deal is with the ignition circuit going to the glovebox.

9. If all else fails, I can install a relay and bypass the ignition system, as several people on Mud have done.
10. Give up, buy a Camry.
