I am coming up empty on my searches for 100 series radio installs.. anyone know of one that's been documented? Or do I have to break the ice here...
Farnham?
Farnham?
-
COLOYOTA EXPO: Vote for your favorite shirt color.
Click here to see the options and place your vote.
100 series radio installs?
- Thread starter nakman
- Start date
sleeoffroad
Hard Core 4+
Remote faceplate either attached to the ashtray lip or oeverhead by the sunroof controls, depending on size. A lot of hundy owners have radio's but the on-line documentation is not so plentiful. Look at the rigs of the month in the 100 section on Mud. Might be some in there.
Ok thanks Christo I think the ashtray lip is going to work, at least until I decide to do something else. I've never been a big fan of the overhead for some reason...

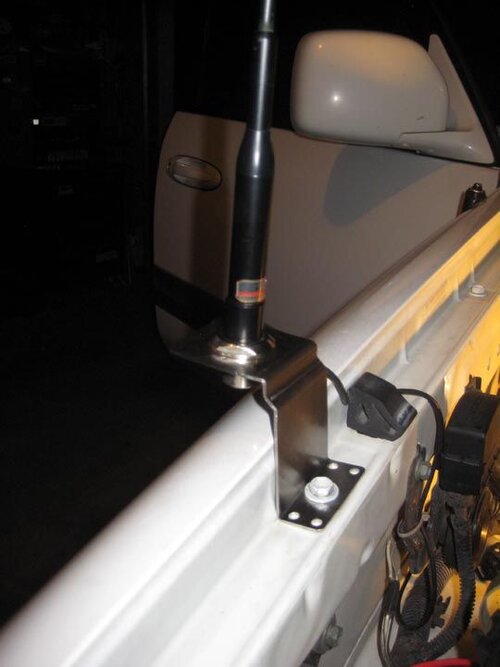

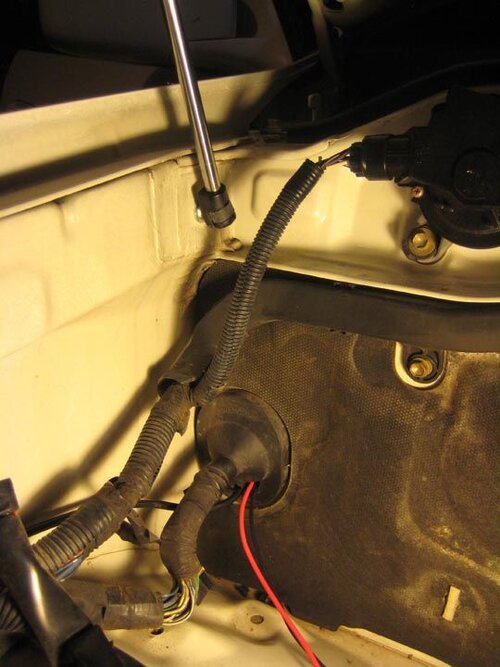

Anyway here's the 10 second writeup: radio is a Yaesu FT-8800. I ran the wires through the passenger side grommet, then down the kick panel and under the carpet next to the existing harness. The antenna uses one of the stainless brackets that Nathaniel makes (free shipping!) and my antenna is a SBB-1 for city life and trails, and a Diamond NR770HB for once I'm out and about on a longer journey.. it's too long for every day use though as it smacks the garage, and we just can't have that.

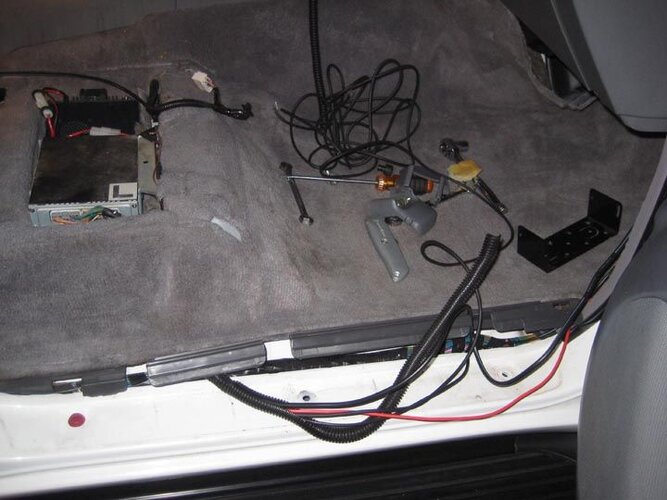

I ran the wires up under the seat, where I wedged the radio between the carpet and that computer thing..

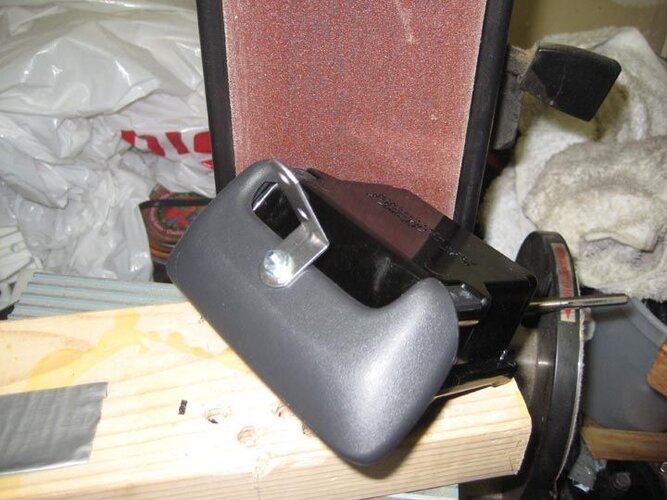

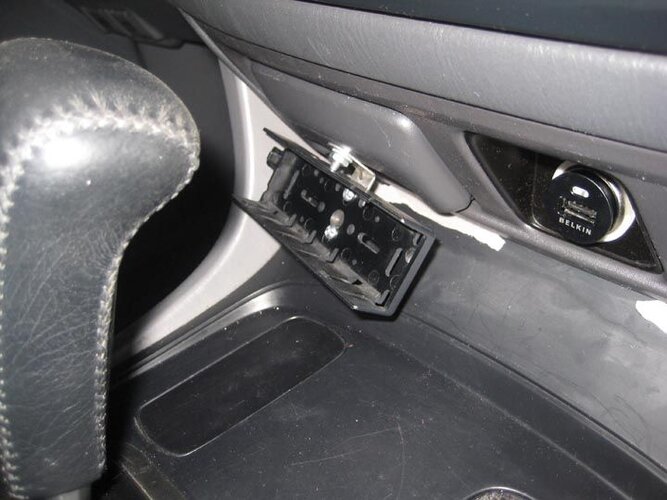

it's actually pretty snug under there, plus the fan is facing up and out, so best possible case for that at least, though I'll have to remove the seat to mess with any of the cables.The remote wire then goes back up and around the passenger foot well, then the faceplate is attached to the ashtray lip, and is the new handle for opening the ashtray. I'll see how this goes, but I wanted something in place by tomorrow so that's what I came up with in the time available.
Attachments
farnhamstj
Hard Core 4+
farnhamstj
Hard Core 4+
link on mud
http://forum.ih8mud.com/100-series-cruisers/343616-ham-radio-what-ya-got.html
Oh, that computer thing under the seat is your radio amp.
http://forum.ih8mud.com/100-series-cruisers/343616-ham-radio-what-ya-got.html
Oh, that computer thing under the seat is your radio amp.
Last edited:
farnhamstj
Hard Core 4+
cool.

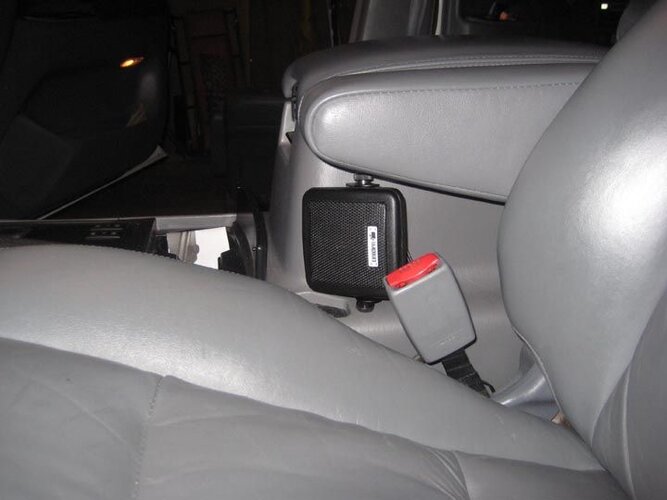

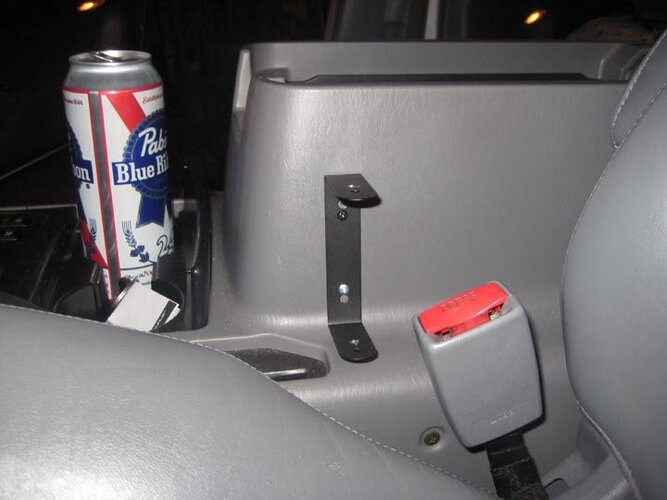

I went by that T&A truck stop tonight down at I-70 & ward road, they have several remote speakers there (Autozone, O'Riley, Radio Shack, and Napa do not). Got the remote speaker installed, and the sound is much improved over the tiny speaker under the passenger seat. It's neat how wide this thing is.. I can stick a speaker there and the brake, seat belt, arm rest, all function just fine still, I could even put another on the other side if I wanted. This is good for now...
Attachments
farnhamstj
Hard Core 4+
Thanks Tim.

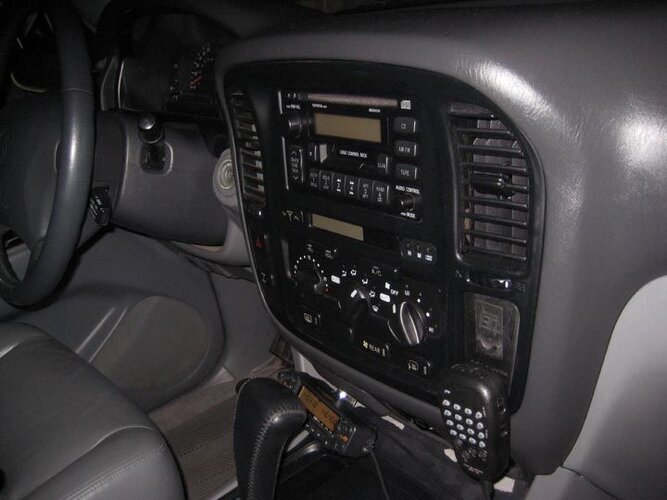

I like the new mic holder that replaces the blank on the right. Can you hook me up with one? I heard one of the prototypes had room for your 80 mic holder, or any other switch. I'd like to get one so i could use it for an antenna switch for winch control (when I get one)
farnhamstj
Hard Core 4+
There's an even newer one with a RAM mount.
sleeoffroad
Hard Core 4+
Yeah to be clear these 100 thingamabobs are going to be Slee's products, I'm just the R&D guy.
Hey, can you wait until you can buy them
NO, I cant. I guess I could do some prototype testing for you, since you sold out.
